Adding Databases

Prepare your server(s)

First, perform these actions on each MariaDB Server you plan to add.

1. Install the Agent package.

# For Red Hat/CentOS/Rocky
sudo dnf install -y mema-agent

# For Debian/Ubuntu
sudo apt install -y mema-agent

1. Create the Enterprise Manager user (allows the Enterprise Manager server to connect remotely):

CREATE USER 'monitor'@'<Enterprise_Manager_IP>' IDENTIFIED BY '<password>';
GRANT REPLICA MONITOR ON *.* TO 'monitor'@'<Enterprise_Manager_IP>';

Replace <Enterprise_Manager_IP> with the IP of your Enterprise Manager server and <password> with a secure password.

1. Create the Local Agent user (required for the agent to collect detailed metrics from the local database instance):

CREATE USER 'monitor'@'localhost' IDENTIFIED BY '<password>';
GRANT PROCESS, BINLOG MONITOR, REPLICA MONITOR, REPLICATION MASTER ADMIN ON *.* TO 'monitor'@'localhost';

Replace <password> with a secure password.

Register in the UI

1. Go to your MariaDB Enterprise Manager web interface (for example https://<Enterprise_Manager_IP>:8090).

2. Log in with user who has edit permission.

3. Begin the Add Database process:

   • If this is your first time and no databases are present, you'll be on the "Add Database" screen automatically.

   • If you already have other databases, click the + Add Database button.

4. Ensure the Database without MaxScale option is selected.\


5. Fill in the connection details for your first server using the Enterprise Manager User ('monitor'@'<Enterprise_Manager_IP>').

Standalone server or a Topology

To add a Standalone Server: Click Add and proceed to the next step (4).

To create a Topology:

1. Click the Plus icon (+) to add another server.\


2. Fill in the connection details for the second server in your topology and click Confirm. Repeat for all nodes in your topology.

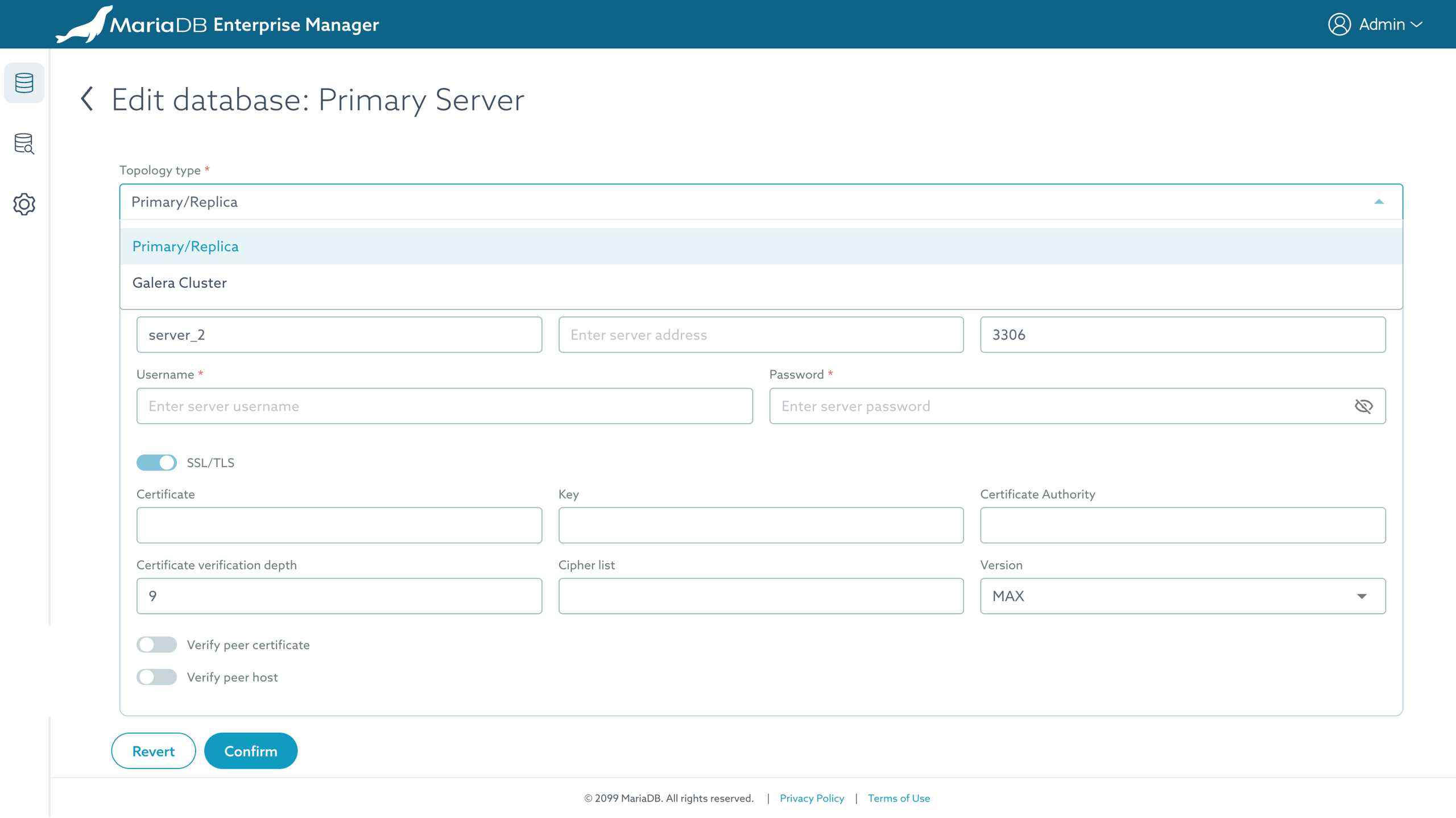

3. Once all nodes are added, select the Topology Type (e.g., Primary/Replica — default — or Galera Cluster) and click Confirm.\



Link the Agent(s) 🔗

For each server added, link its agent:

1. Find the server in the inventory list, click the three-dot menu (⋮), and select Install Agent.\


2. Enter the credentials for the Local Agent User ('monitor'@'localhost') to generate a setup command.\


3. Copy the command and run it on that server's terminal to link the agent.

Prepare all servers in the topology

Perform these actions on every server in the topology: the MaxScale instance(s) and each backend MariaDB Server attached.

• Install the Agent package on all servers.

# For Red Hat/CentOS/Rocky
sudo dnf install -y mema-agent

# For Debian/Ubuntu
sudo apt install -y mema-agent

• Create a Local Agent user on each backend MariaDB Server:

CREATE USER 'monitor'@'localhost' IDENTIFIED BY '<password>';
GRANT PROCESS, BINLOG MONITOR, REPLICA MONITOR, REPLICATION MASTER ADMIN ON *.* TO 'monitor'@'localhost';

Replace <password> with a secure password.

Register the MaxScale instance in the UI 🖥️

1. Begin the Add Database process:

   • If this is your first time and no databases are present, you'll be on the "Add Database" screen to begin with.

   • If you already have other databases, click the + Add Database button.

2. Select the Database with MaxScale option.

3. Provide the connection details for your MaxScale instance (IP address, API port 8989, and its admin credentials).

4. Click Add. Enterprise Manager will connect to MaxScale and automatically discover all backend MariaDB servers it manages.

Link all a 🔗

You must link the agent on every server in the topology to Enterprise Manager. The UI will show the MaxScale instance and discovered backend servers marked as "Not Registered."

For each server in the list (start with the MaxScale instance, then each MariaDB server):

1. Click the three-dot menu (⋮) and select Install Agent.\


2. The UI will generate a unique setup command for that specific server with the username and password you provide. Copy the command.\


3. On that specific server, paste and run the command in the terminal.

Repeat this process for every server in the topology. Once all agents are linked, the dashboard will begin showing the health of the entire topology.
